Stereo Cassette 5100
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1976–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 124480

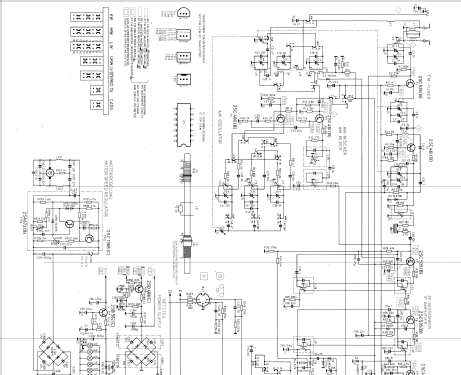

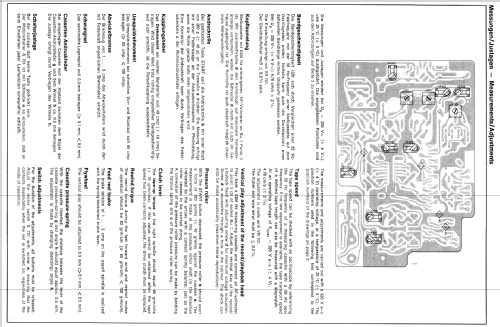

Bild aus Service Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 41
- Semiconductors
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org
- Model: Stereo Cassette 5100 - ITT Schaub-Lorenz
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 450 x 140 x 280 mm / 17.7 x 5.5 x 11 inch
- Notes
- ICs: 2.
Stereo-Steuergerät mit integriertem Cassetten-Recorder. Ausgangsleistung: 2× 9 W (Sinus).
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Source of data
- Handbuch VDRG 1977/1978
- Mentioned in
- Handbuch VDRG 1976/1977
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
