• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1977/1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 124475

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org

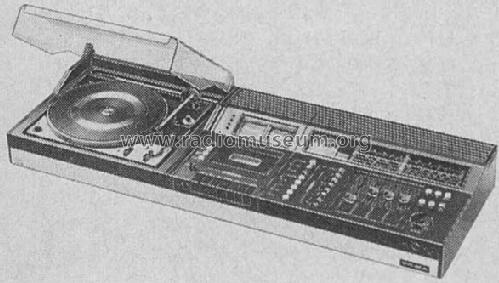

• Model: 7600 HiFi Compact - ITT Schaub-Lorenz

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 997 x 170 x 356 mm / 39.3 x 6.7 x 14 inch

• Notes
• Stereo-Steuergerät mit eingebautem Cassetten-Recorder und Automatikspieler Dual 1225, Magnetsystem Shure M75D. Ausgangsleistung: 2× 30 W (Sinus).

• Net weight (2.2 lb = 1 kg)
• 19.3 kg / 42 lb 8.2 oz (42.511 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
