• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1979 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276687

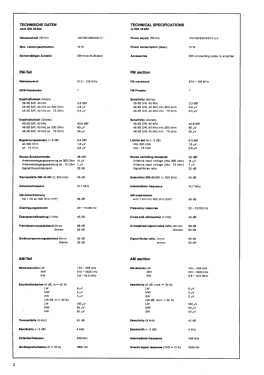

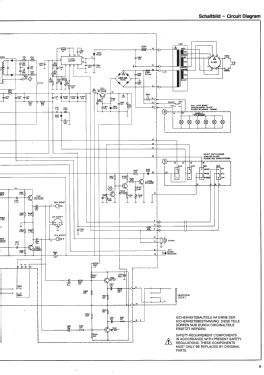

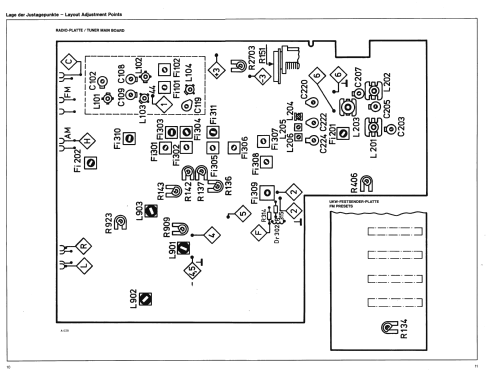

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: AM/FM-Tunner Hifi 8061 - ITT Schaub-Lorenz

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 480 x 105 x 350 mm / 18.9 x 4.1 x 13.8 inch

• Notes

• 7 UKW-Festsender, Gehäusefarbe champagner.

• Net weight (2.2 lb = 1 kg)
• 7.4 kg / 16 lb 4.8 oz (16.3 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.

• Other Models

• Here you find 771 models, 707 with images and 364 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
