AMIGO 200 Jogger

AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 747115) Radio

AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 747116) Radio
AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 542409) Radio AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 542410) Radio
AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 542412) Radio AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 1375037) Radio
AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 1375040) Radio AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 1375043) Radio
Use red slider bar for more.
AMIGO 200 Jogger; ITT Schaub-Lorenz (ID = 542409) Radio
ITT Schaub-Lorenz: AMIGO 200 Jogger [Radio] ID = 542409 933x455

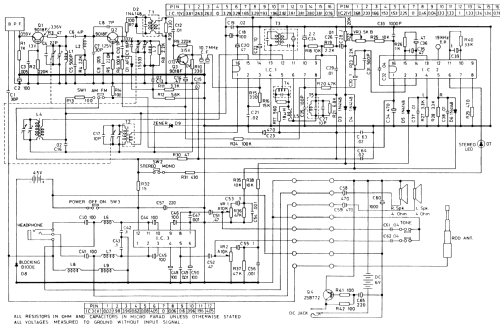

Select picture or schematic to display from thumbnails on the right and click for download.
For model AMIGO 200 Jogger, ITT Schaub-Lorenz:
mit eingesetztem Empfangsteil

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 4: CS9018 CS9018 CS9018 2SB772
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Radio with other functions
Power type and voltage Storage and/or dry batteries / 7 x 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AMIGO 200 Jogger - ITT Schaub-Lorenz
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 153 x 55 mm / 13 x 6 x 2.2 inch
Notes

Das Rundfunkteil kann entfernt, und separat mit einem Kopfhörer betrieben werden.

Braucht 4,5V im Kopfhörerbetrieb, und 6V mit den Lautsprechern.

Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data - - Data from my own collection

Model page created by Horst Rempel. See "Data change" for further contributors.
