Car 11; ITT Schaub-Lorenz (ID = 357635) R-Player
ITT Schaub-Lorenz: Car 11 [R-Player] ID = 357635 933x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model Car 11, ITT Schaub-Lorenz:

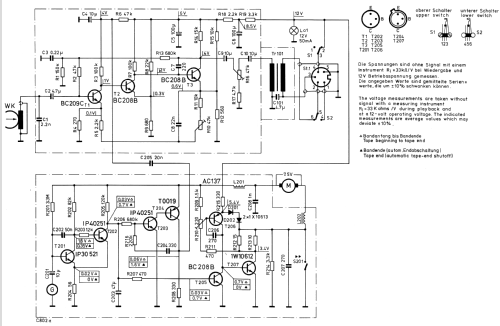

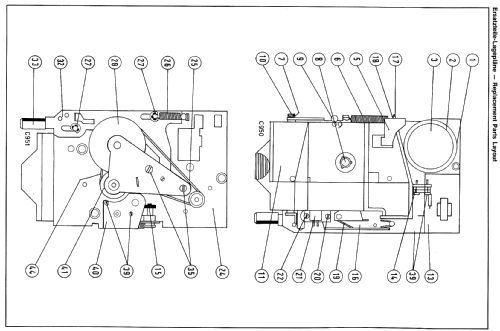

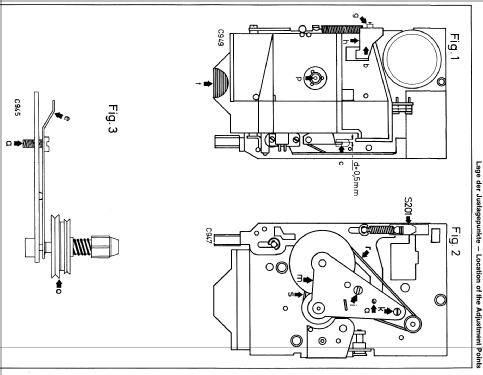

Bild aus Service Manual

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1973/1974 Category: Sound/Video Recorder and/or Player
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Powered by external power supply or a main unit. / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Car 11 - ITT Schaub-Lorenz
Material Metal case
Dimensions (WHD) 120 x 55 x 180 mm / 4.7 x 2.2 x 7.1 inch
Notes Auto-Cassetten-Tonband für Mono-Wiedergabe in Verbindung mit einem Auto-Empfänger.
Net weight (2.2 lb = 1 kg) 1.1 kg / 2 lb 6.8 oz (2.423 lb)
External source of data Erb
Source of data Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
