CB-Feststation TC 24

CB-Feststation TC 24; ITT Schaub-Lorenz (ID = 1911750) Citizen
Use red slider bar for more.
CB-Feststation TC 24; ITT Schaub-Lorenz (ID = 1911750) Citizen

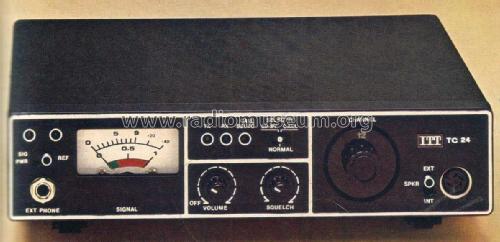

ITT Schaub-Lorenz: CB-Feststation TC 24 [Citizen] ID = 1911750 1195x579
Select picture or schematic to display from thumbnails on the right and click for download.
For model CB-Feststation TC 24, ITT Schaub-Lorenz:
aus ITT-Katalog 1977

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1977 ? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 24:
Main principle Transceiver
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: CB-Feststation TC 24 - ITT Schaub-Lorenz
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 260 x 75 x 280 mm / 10.2 x 3 x 11 inch
Notes

CB-Sprechfunkgerät Feststation im 11m Band mit 12 Kanälen (Quarz) (4 - 15) 27.005 - 27.135 MHz, Sendeleistung 500 mW.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Mentioned in -- Original prospect or advert

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
