ITT Schaub-Lorenz: Clock-Radio [Radio] ID = 132888 507x256

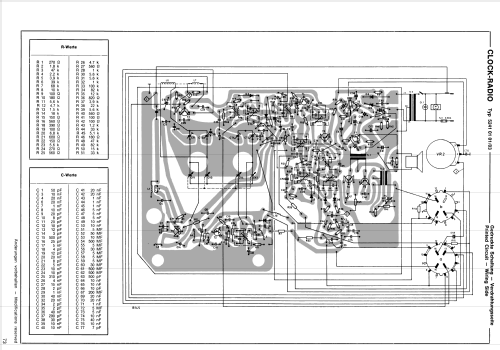

Select picture or schematic to display from thumbnails on the right and click for download.
For model Clock-Radio, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1968–1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Clock-Radio - ITT Schaub-Lorenz
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 290 x 105 x 155 mm / 11.4 x 4.1 x 6.1 inch
Notes Transistoren: 2× 2SC668, 2SC480, 2× 2SC537, 2× SB185, 2SB22. Farbe altweiß oder nußbaum. Produziert in Fernost.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Josef Pilz. See "Data change" for further contributors.
