• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197767

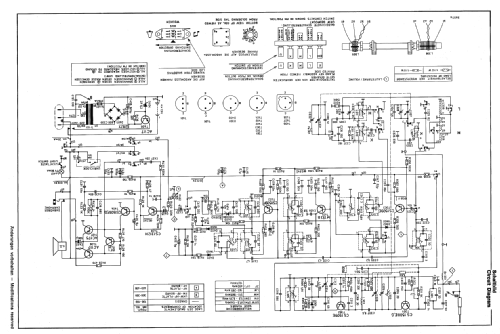

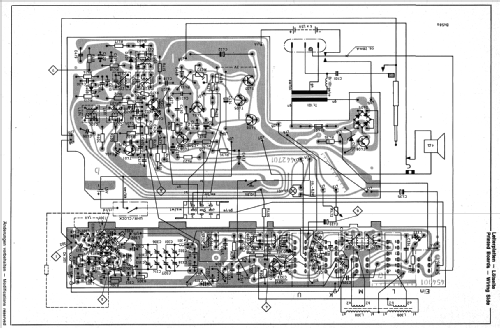

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-127; 220-240 / 4×1,5 Volt

• Loudspeaker

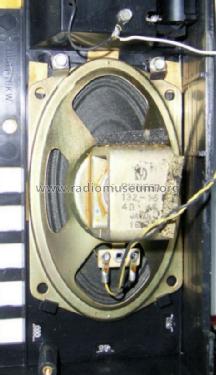

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Clock-Radio 100 52410207 = altweiß - ITT Schaub-Lorenz

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 230 x 90 x 155 mm / 9.1 x 3.5 x 6.1 inch

• Notes
• Weckuhr, auch bei Netzbetrieb wird die Schaltuhr mit einer 1,5-V-Batterie betrieben.

• Net weight (2.2 lb = 1 kg)
• 1.4 kg / 3 lb 1.3 oz (3.084 lb)

• Price in first year of sale
• 228.00 DM

• Source of data
• - - Data from my own collection

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
