• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1982 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126988

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Radio with other functions

• Power type and voltage
• Dry Batteries / AAA: 3 x 1.5 & G-13: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

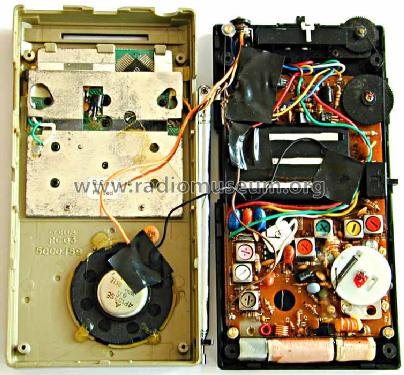

• Model: CRC-4000 - 66315813 - ITT Schaub-Lorenz

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 80 x 145 x 23 mm / 3.1 x 5.7 x 0.9 inch

• Notes

• Mit Taschenrechner, LCD-Display 8-stellig, Uhr mit Weckfunktion.
  2 Knopfzellen AG13 oder G-13 für Taschenrechner/Uhr.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by a member from D. See "Data change" for further contributors.
