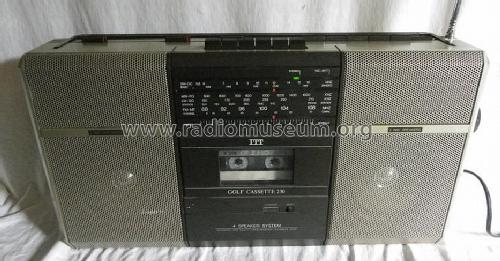

Golf Cassette 230 55538950
ITT Schaub-Lorenz: Golf Cassette 230 55538950 [Radio] ID = 1064517 849x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1984/1985 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Main principle | Superheterodyne (common); ZF/IF 459/10700 kHz |
|---|---|
| Wave bands | Broadcast, Long Wave, Short Wave plus FM or UHF. |

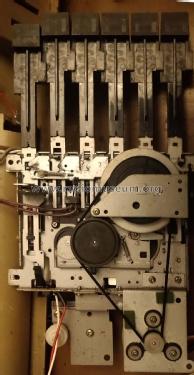

| Details | Cassette-Recorder or -Player |
| Power type and voltage | Line / Batteries (any type) / 220 / 8 x 1,5 Volt |
| Loudspeaker | 4 Loudspeakers |
| Power out | 7 W (unknown quality) |
| from Radiomuseum.org | Model: Golf Cassette 230 55538950 - ITT Schaub-Lorenz |
| Material | Modern plastics (no Bakelite or Catalin) |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 490 x 250 x 110 mm / 19.3 x 9.8 x 4.3 inch |
| Net weight (2.2 lb = 1 kg) | 5 kg / 11 lb 0.2 oz (11.013 lb) |
| Source of data | -- Original prospect or advert |

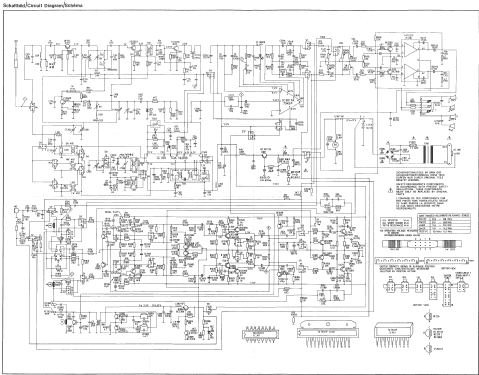

| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
