• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71371

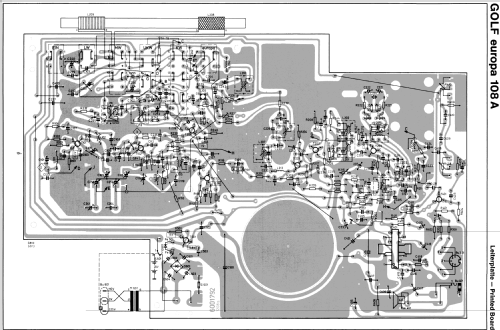

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC535 2SC535 ED1502 ED1502 ED1502 ED592 CS9013 3N212 2SC381 MPS9633 TBA810

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

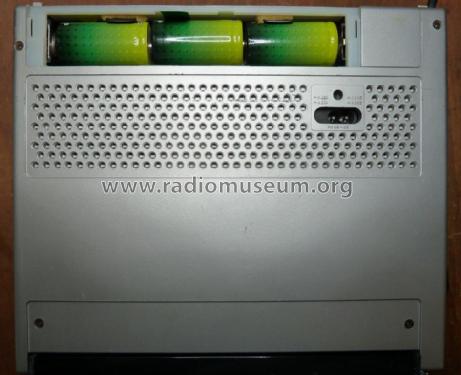

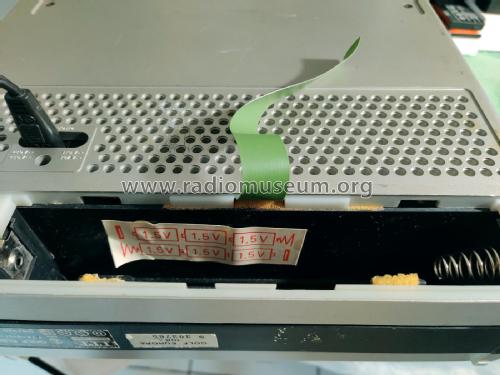

• Power type and voltage
• Line / Batteries (any type) / 6x1,5; 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• from Radiomuseum.org

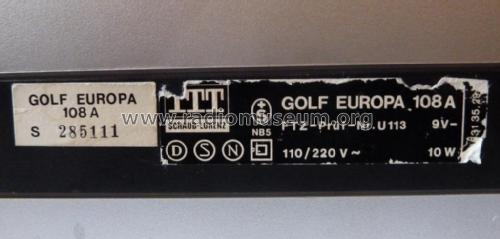

• Model: Golf Europa 108A 5213-0289 [metallic] - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 240 x 75 mm / 11.8 x 9.4 x 3 inch

• Notes
• 1IC

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
