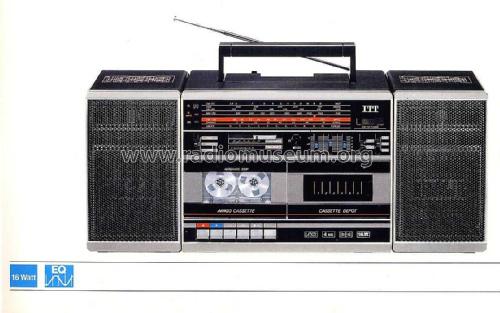

Amigo Cassette 514

ITT-Graetz

  • Year
  • 1986
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 242359

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 459/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220-240 / 6 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 16 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Amigo Cassette 514 - ITT-Graetz
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 510 x 251 x 155 mm / 20.1 x 9.9 x 6.1 inch
  • Notes
  • Gehäusefarben: Schwarz matt oder rot.

  • Net weight (2.2 lb = 1 kg)
  • 3.9 kg / 8 lb 9.4 oz (8.59 lb)
  • Mentioned in
  • - - Manufacturers Literature (ITT Katalog 1989)
  • Literature/Schematics (2)
  • -- Original-techn. papers.
  • Author
  • Model page created by Richard Winter. See "Data change" for further contributors.
