Golf 320 55115200

Golf 320 55115200; ITT-Graetz (ID = 375909) Radio

Golf 320 55115200; ITT-Graetz (ID = 375914) Radio

Golf 320 55115200; ITT-Graetz (ID = 375911) Radio

Golf 320 55115200; ITT-Graetz (ID = 375913) Radio

Golf 320 55115200; ITT-Graetz (ID = 2052293) Radio

Golf 320 55115200; ITT-Graetz (ID = 2052294) Radio
Golf 320 55115200; ITT-Graetz (ID = 328414) Radio Golf 320 55115200; ITT-Graetz (ID = 426665) Radio
Golf 320 55115200; ITT-Graetz (ID = 426666) Radio Golf 320 55115200; ITT-Graetz (ID = 123381) Radio
Golf 320 55115200; ITT-Graetz (ID = 1426215) Radio Golf 320 55115200; ITT-Graetz (ID = 1426216) Radio
Golf 320 55115200; ITT-Graetz (ID = 1426218) Radio Golf 320 55115200; ITT-Graetz (ID = 1853494) Radio
Golf 320 55115200; ITT-Graetz (ID = 1853495) Radio Golf 320 55115200; ITT-Graetz (ID = 1853496) Radio
Use red slider bar for more.
Golf 320 55115200; ITT-Graetz (ID = 328414) Radio

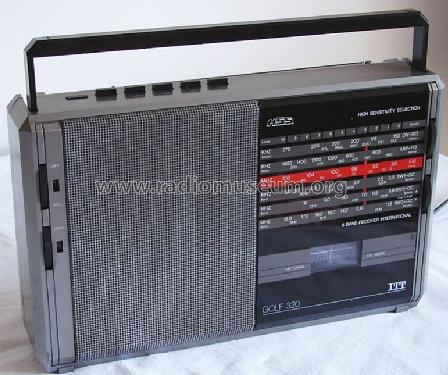

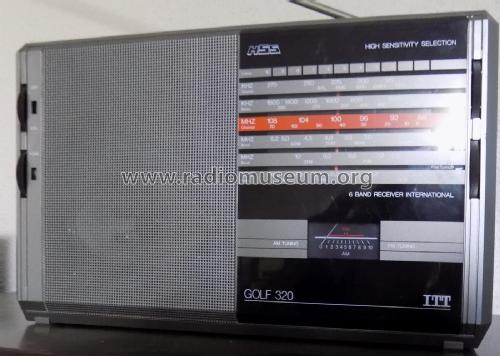

ITT-Graetz: Golf 320 55115200 [Radio] ID = 328414 771x645

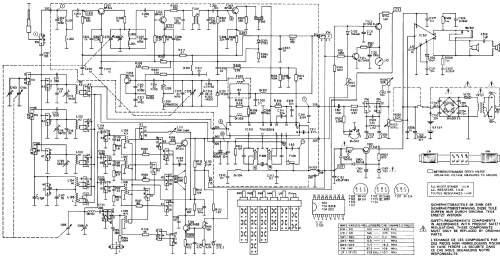

Select picture or schematic to display from thumbnails on the right and click for download.

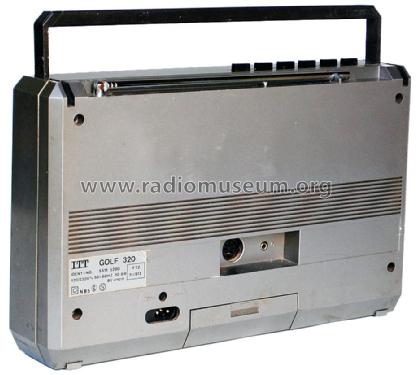

For model Golf 320 55115200, ITT-Graetz

Country:  Germany
Manufacturer / Brand:  ITT-Graetz
Year: 1985 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: BC238 BC238 BC238 BC308 TDA2822 TDA1220 BF506 BF451 BF451 BF324 BF241
Main principle Superheterodyne (common); ZF/IF 459/10700 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 120, 230 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Golf 320 55115200 - ITT-Graetz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 195 x 65 mm / 12.2 x 7.7 x 2.6 inch
Notes

FM 87,5 - 108 MHz
SW1 2,25 - 5,2 MHz
SW2 5,8 - 11 MHz
SW3 11,5 - 18,5 MHz
Fine tuning on SW. Ferrite 12 cm. Loudspeakers: elliptical, cm 12 x cm 8 and, for treble, circular, diameter cm 3

Gehäusefarbe: schwarz matt.

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in - - Manufacturers Literature (ITT Katalog 1989)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Marcus Pütz. See "Data change" for further contributors.
