• Country
• Germany

• Manufacturer / Brand
• ITT-Graetz

• Year
• 1983–1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73264

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 459/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120; 230 / C: 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

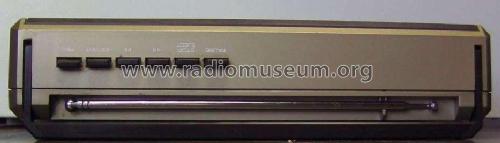

• Model: Pagino Cass.310 55531704 - ITT-Graetz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 312 x 192 x 70 mm / 12.3 x 7.6 x 2.8 inch

• Notes
• KW 5,8 MHz - 16,2 MHz
  8 Dioden, 1 IC TGA820M, 1 IC TDA1220B.

• Source of data
• Radiokatalog Band 2, Ernst Erb

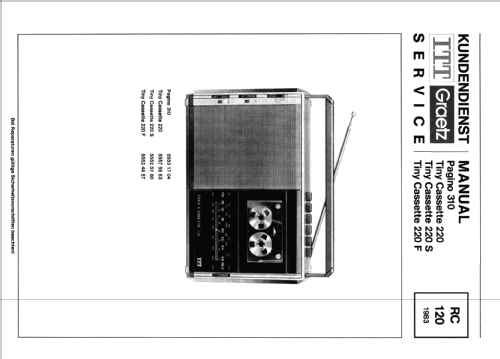

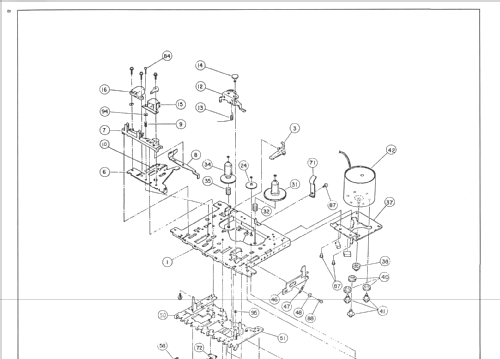

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
