Polo 200; ITT-Graetz (ID = 2270796) Radio
ITT-Graetz: Polo 200 [Radio] ID = 2270796 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Polo 200, ITT-Graetz

Country:  Germany
Manufacturer / Brand:  ITT-Graetz
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: CS9016 CS9016 CS1502 CS9016 CS9016 TBA820M 1N60 CDG00
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz; 1 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / R6: 6 x 1,5 Volt

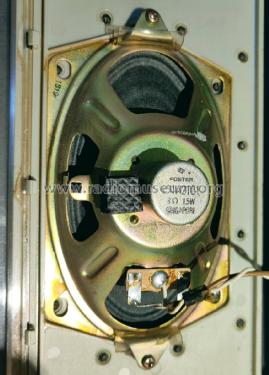

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Polo 200 - ITT-Graetz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 255 x 170 x 70 mm / 10 x 6.7 x 2.8 inch
Notes NF-IC TBA820M
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

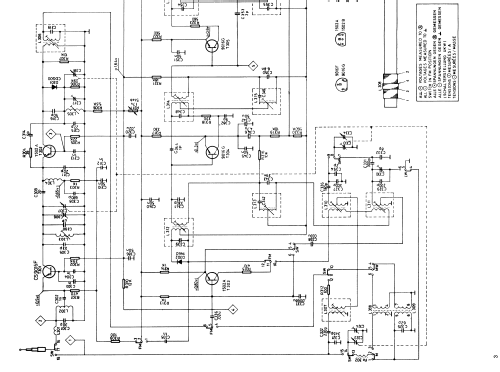

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Bernd Pötzsch. See "Data change" for further contributors.
