• Country
• Germany

• Manufacturer / Brand
• ITT-Graetz

• Year
• 1982/1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 91552

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

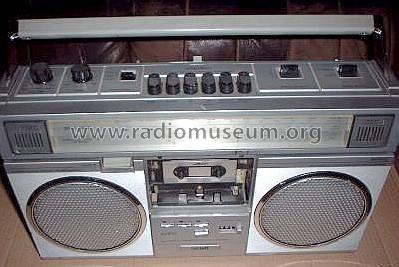

• Model: SRC500 - ITT-Graetz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 440 x 255 x 120 mm / 17.3 x 10 x 4.7 inch

• Notes
• Siehe auch Ingelen SRC500.

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.

• Other Models

• Here you find 74 models, 67 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
