• Country
• Germany

• Manufacturer / Brand
• ITT-Graetz

• Year
• 1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127753

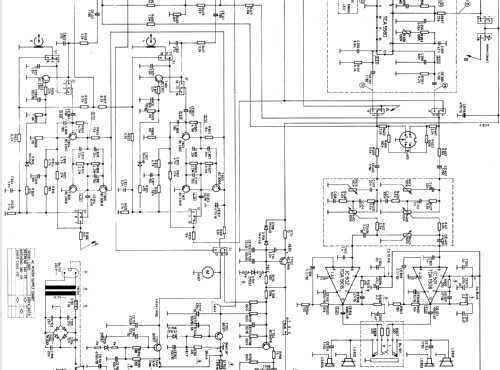

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Loudspeaker
• 4 Loudspeakers

• Power out
• 20 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Weekend 320 - ITT-Graetz

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Eingebautes Doppelkassettenlaufwerk.

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
