• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1980

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 207774

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

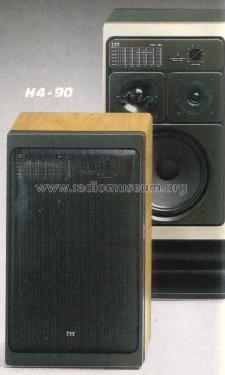

• Model: H 4-90 - ITT Schaub-Lorenz

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 270 x 450 x 190 mm / 10.6 x 17.7 x 7.5 inch

• Notes
• 3-Wege-Kompakt-Regalbox, 50 Watt Sinus, 4 Ohm, 35-25.000Hz, Übergangsfrequenzen 1500Hz / 6000Hz.
  19mm Kalotten-HT, 37mm Kalotten MT, 200mm Tieftöner, Nettovolumen 15,7 Liter.
  Ausführung nussbaumfarbig; anthrazit/metallic (Metallblende abnehmbar).
  Pegelregler und Überlastungsschutz für Hochtonbereich (LED-Anzeige).
  Empfohlenes Zubehör: Standfuss LF10

• Source of data
• -- Original prospect or advert

• Mentioned in
• Katalog "Welt der Technik ITT - High Fidelity 80/81"

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
