HiFi 3020

HiFi 3020; ITT Schaub-Lorenz (ID = 1867329) R-Player

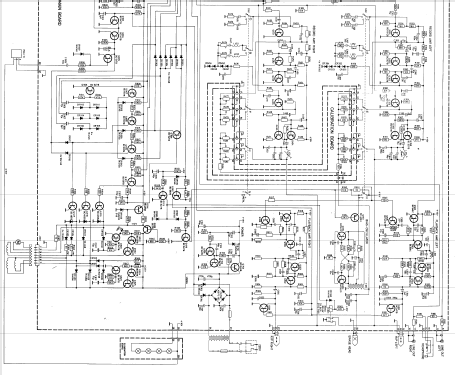

HiFi 3020; ITT Schaub-Lorenz (ID = 1867330) R-Player

HiFi 3020; ITT Schaub-Lorenz (ID = 1867387) R-Player

HiFi 3020; ITT Schaub-Lorenz (ID = 1867388) R-Player

HiFi 3020; ITT Schaub-Lorenz (ID = 1867398) R-Player

HiFi 3020; ITT Schaub-Lorenz (ID = 1867399) R-Player

HiFi 3020; ITT Schaub-Lorenz (ID = 1867400) R-Player
HiFi 3020; ITT Schaub-Lorenz (ID = 976592) R-Player
Use red slider bar for more.
HiFi 3020; ITT Schaub-Lorenz (ID = 976592) R-Player
ITT Schaub-Lorenz: HiFi 3020 [R-Player] ID = 976592 933x380
Select picture or schematic to display from thumbnails on the right and click for download.
For model HiFi 3020, ITT Schaub-Lorenz:
Q: ITT, Service-Unterlagen

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1983 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: HiFi 3020 - ITT Schaub-Lorenz
Material Metal case
Shape Book-shelf unit.
Notes

Frontloading 2-Head Stereo Cassette Deck with Dolby B, MPX Filter and Metal Tape Capability.
Auto Shutoff (Full), Mechanical Tape Loading.
Analog Needle Meters, Manual Bias-/Level Calibration.

See also Tandberg TCD3034.

Model page created by Franz Scharner. See "Data change" for further contributors.
