• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1980 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276713

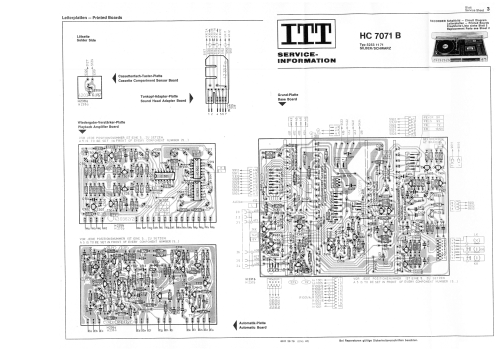

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 96 W (undistorted)

• Material
• Various materials

• from Radiomuseum.org
• Model: HiFi-Center HC7071 - ITT Schaub-Lorenz

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 744 x 190 x 380 mm / 29.3 x 7.5 x 15 inch

• Notes

• Kombination von FM-Radioteil mit Plattenspieler und Kassettendeck. NF-Verstärker mit 2 x 75 Watt Musikleistung an 4Ω, UKW-Bereich 87,5 bis 104 MHz. 11 FM Senderspeicher, in Gehäusefarben silber/schwarz.

• Net weight (2.2 lb = 1 kg)
• 19.5 kg / 42 lb 15.2 oz (42.952 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
