• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 125233

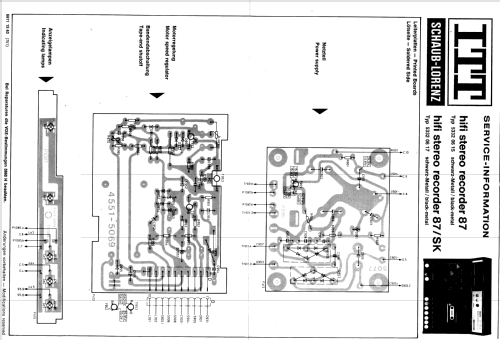

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 120; 150; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

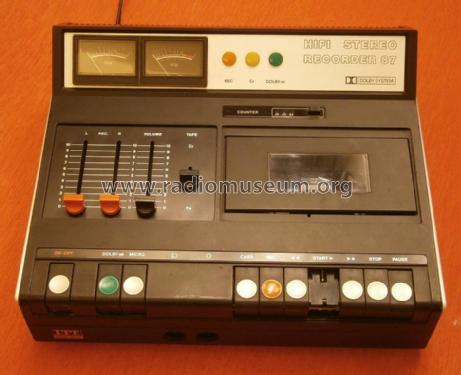

• Model: HiFi Stereo Recorder 87 - ITT Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 320 x 132 x 280 mm / 12.6 x 5.2 x 11 inch

• Notes

• ICs: 2.
  HiFi-Cassetten-Deck. Dolby-B-Rauschunterdrückung;
  Frequenzumfang mit Fe₂O₃-Band: 40···12500 Hz, mit CrO₂-Band: 40···14000 Hz.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977 (und 1977/78)

• Literature/Schematics (1)
• Handbuch RFP 1978 S.384 (Thiele, Fachverlag Funk-Kurier)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
