• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1981 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 303277

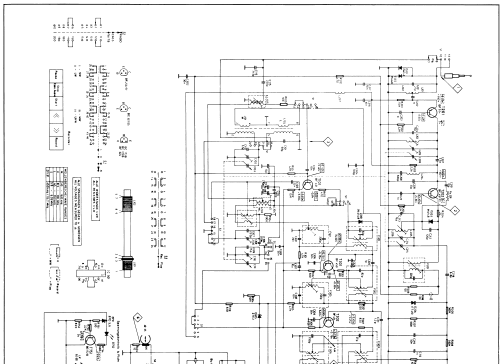

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Interfunk 4 Band AM/FM Radiorecorder RC 1600 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Ahnlich RC 1500 jedoch mit 2-Wege Lautsprecher-System. Siehe auch vermutlich baugleiches Gerät ITT Camping Cassette 110.

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Walter Groer. See "Data change" for further contributors.
