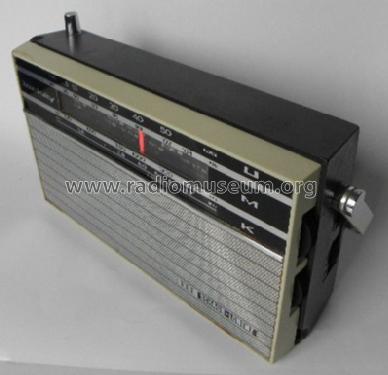

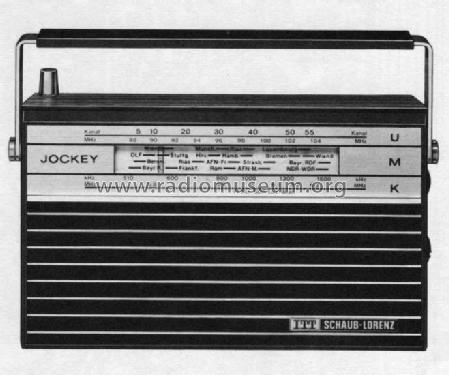

Jockey 102 52130629
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 82434

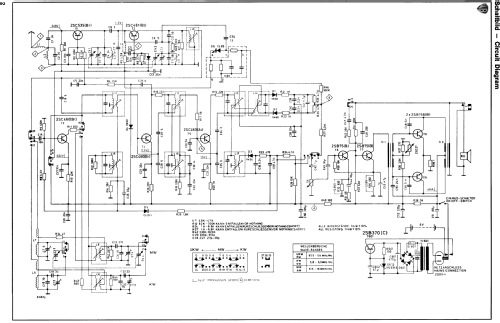

Click on the schematic thumbnail to request the schematic as a free document.

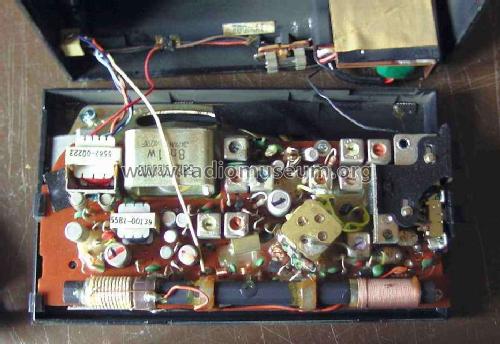

- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 458/10700 kHz; 4 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / AA: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Jockey 102 52130629 - ITT Schaub-Lorenz
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 220 x 125 x 65 mm / 8.7 x 4.9 x 2.6 inch
- Notes
-
Batterien vom Typ " Mignon".
- Net weight (2.2 lb = 1 kg)
- 0.980 kg / 2 lb 2.5 oz (2.159 lb)
- Source of data
- Radiokatalog Band 2, Ernst Erb

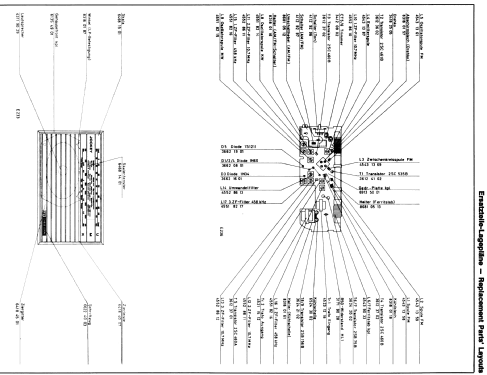

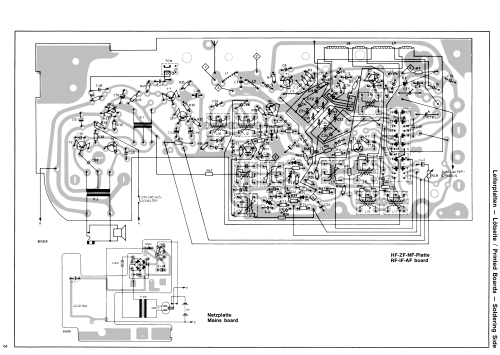

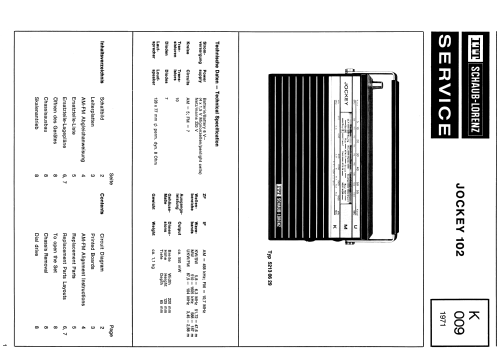

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
