Jockey L ohne Netzbetrieb
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1969 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332445
Q: ITT, Katalog 1-1969
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460ß/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage

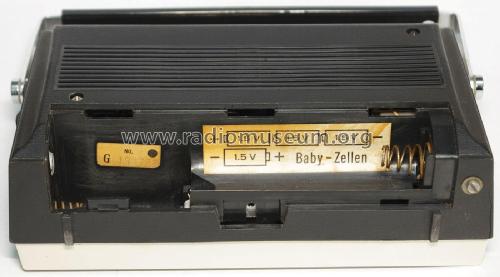

- Batteries / addl. power jack / C: 4 x 1.5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Jockey L [ohne Netzbetrieb] - ITT Schaub-Lorenz
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 204 x 122 x 65 mm / 8 x 4.8 x 2.6 inch
- Notes
-
ITT Schaub-Lorenz Jockey L, Anschluss für Ohrhörer.
Netzbetrieb über zusätzliches Anschlußgerät NG 1001 oder NG 2001 möglich.Farben:
- Schwarz
- Orchidee
- Moosgrün
- Violablau
Siehe auch technisch identischer Vorgänger Schaub-Lorenz Jockey L.
- Net weight (2.2 lb = 1 kg)
- 1.260 kg / 2 lb 12.4 oz (2.775 lb)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
