For model Junior 108 5233 0529, 5533 0535, ITT Schaub-Lorenz:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1976–1978 Category: Broadcast Receiver - or past WW2 Tuner

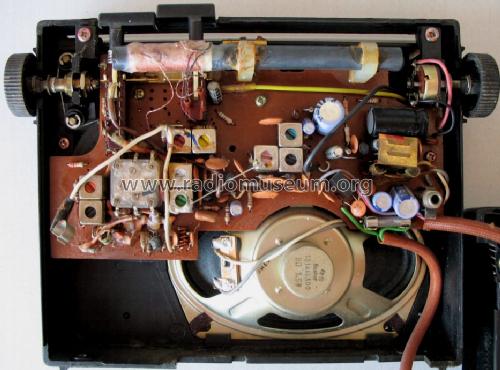

Semiconductors (the count is only for transistors) 9: 2SC784 2SC785 2SC381 CS1312 2SC381 CS1914 CS9012 MPS9410 MPS9460 1N60 DS20 Si-Br-Gl
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)

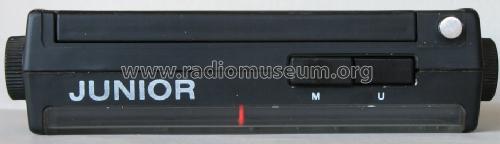

Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / AA: 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Junior 108 5233 0529, 5533 0535 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 215 x 160 x 52 mm / 8.5 x 6.3 x 2 inch
Notes

ITT Junior 108 existiert in 2 Gehäuseausführungen:

  • 5233 0529 braun-silber
  • 5533 0535 schwarz-teak

Jeder Diodentyp ist einmal gelistet.

Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Price in first year of sale 89.00 DM
Source of data Handbuch VDRG 1977/1978 / Radiokatalog Band 2, Ernst Erb
Mentioned in Handbuch VDRG 1976/1977

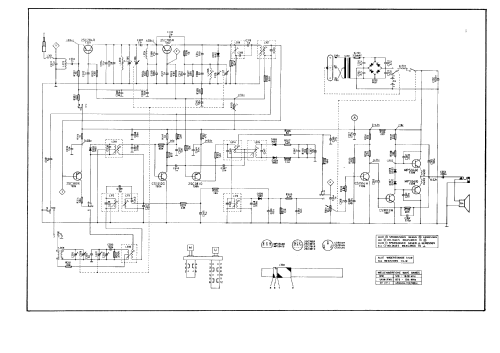

Literature/Schematics (1) -- Original-techn. papers.
