Junior 28A

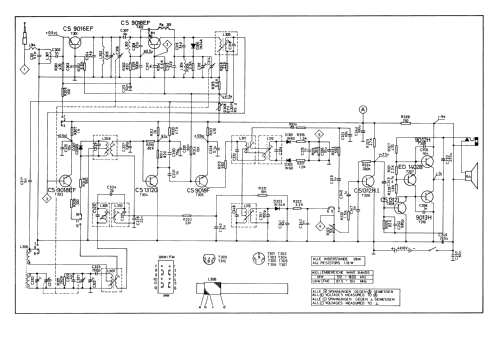

Junior 28A; ITT Schaub-Lorenz (ID = 96267) Radio

Junior 28A; ITT Schaub-Lorenz (ID = 317507) Radio

Junior 28A; ITT Schaub-Lorenz (ID = 833471) Radio
Junior 28A; ITT Schaub-Lorenz (ID = 80711) Radio Junior 28A; ITT Schaub-Lorenz (ID = 141046) Radio
Junior 28A; ITT Schaub-Lorenz (ID = 141047) Radio Junior 28A; ITT Schaub-Lorenz (ID = 825354) Radio
Junior 28A; ITT Schaub-Lorenz (ID = 825355) Radio Junior 28A; ITT Schaub-Lorenz (ID = 825356) Radio
Junior 28A; ITT Schaub-Lorenz (ID = 825357) Radio Junior 28A; ITT Schaub-Lorenz (ID = 825358) Radio
Junior 28A; ITT Schaub-Lorenz (ID = 1054557) Radio Junior 28A; ITT Schaub-Lorenz (ID = 1054558) Radio
Use red slider bar for more.
Junior 28A; ITT Schaub-Lorenz (ID = 80711) Radio
ITT Schaub-Lorenz: Junior 28A [Radio] ID = 80711 528x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Junior 28A, ITT Schaub-Lorenz:
ITT Junior 28A

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1979/1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 4x1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Junior 28A - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 175 x 112 x 53 mm / 6.9 x 4.4 x 2.1 inch
Notes Kophörer-Buchse vorhanden. Ovallautsprecher 6 x 9 cm.
Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.
