Polo Electronic 106

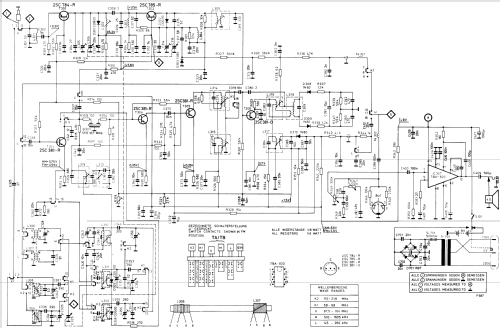

Polo Electronic 106; ITT Schaub-Lorenz (ID = 866718) Radio

Polo Electronic 106; ITT Schaub-Lorenz (ID = 866719) Radio

Polo Electronic 106; ITT Schaub-Lorenz (ID = 866720) Radio

Polo Electronic 106; ITT Schaub-Lorenz (ID = 866722) Radio

Polo Electronic 106; ITT Schaub-Lorenz (ID = 866721) Radio

Polo Electronic 106; ITT Schaub-Lorenz (ID = 866724) Radio

Polo Electronic 106; ITT Schaub-Lorenz (ID = 866723) Radio
Polo Electronic 106; ITT Schaub-Lorenz (ID = 976162) Radio Polo Electronic 106; ITT Schaub-Lorenz (ID = 481825) Radio
Polo Electronic 106; ITT Schaub-Lorenz (ID = 980286) Radio Polo Electronic 106; ITT Schaub-Lorenz (ID = 1873442) Radio
Polo Electronic 106; ITT Schaub-Lorenz (ID = 1873443) Radio Polo Electronic 106; ITT Schaub-Lorenz (ID = 1901672) Radio
Polo Electronic 106; ITT Schaub-Lorenz (ID = 1908016) Radio
Use red slider bar for more.
Polo Electronic 106; ITT Schaub-Lorenz (ID = 976162) Radio
ITT Schaub-Lorenz: Polo Electronic 106 [Radio] ID = 976162 455x343
Select picture or schematic to display from thumbnails on the right and click for download.
For model Polo Electronic 106, ITT Schaub-Lorenz:
Picture from an ended eBay auction № 270718843186, created by bachdosenfund

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1975/1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Polo Electronic 106 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 178 x 67 mm / 9.8 x 7 x 2.6 inch
Notes ICs: 1.
ITT Schaub-Lorenz Kofferempfänger Polo Electronic 106.
Abstimmung mit Schiebezeiger; KW-Lupe; nichtabschaltbare AFC.

Gehäusevarianten: Schwarz (Grill in Silber, Schwarz oder Holzdekor)
Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Collectors' prices
Source of data Handbuch VDRG 1975/1976
Mentioned in - - Manufacturers Literature

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
