RC1000 53312505

ITT Schaub-Lorenz

  • Year
  • 1973–1975
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29175

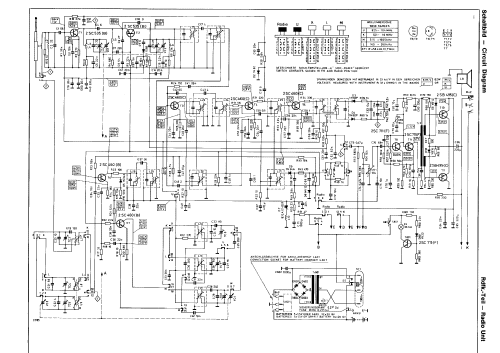

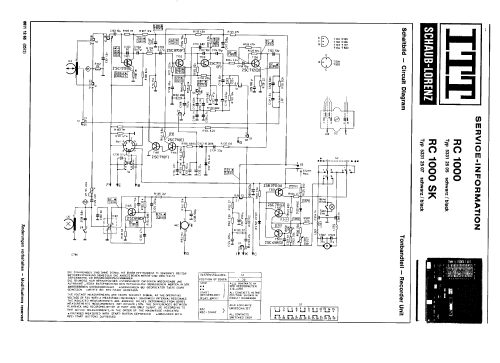

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 21
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 130, 220 / 5 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: RC1000 53312505 - ITT Schaub-Lorenz
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 294 x 79 x 264 mm / 11.6 x 3.1 x 10.4 inch
  • Notes
  • Übertragungsbereich des Cassetten-Recorders: 60-10000 Hz.
  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • External source of data
  • Erb
