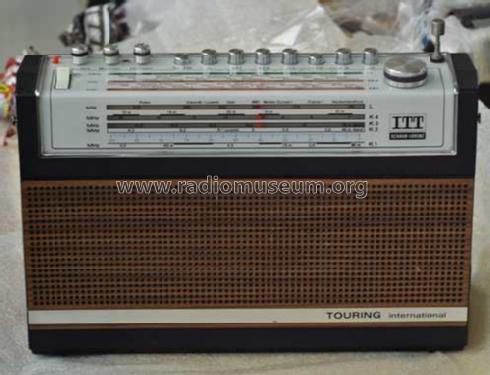

Touring international 103 52151403 ÖVE; ITT Schaub-Lorenz (ID = 1630829) Radio
ITT Schaub-Lorenz: Touring international 103 52151403 ÖVE [Radio] ID = 1630829 500x382
Select picture or schematic to display from thumbnails on the right and click for download.
For model Touring international 103 52151403 ÖVE, ITT Schaub-Lorenz Wien:
My good radio, upload 1 Germany ITT Touring international 103 Radio Manufacturer / Brand: ITT 绍布洛伦茨 Vienna Production Year: 1972/1973 Type: Radio Semiconductors (transistors) 16:

Country:  Austria
Manufacturer / Brand:  ITT Schaub-Lorenz Wien
Year: 1972/1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 16:
Main principle Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line plus power jack, mostly with battery or storage battery / 127; 220 / 6; 12 / D: 6 x 1,5; 3R12: 2 x 4,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Touring international 103 52151403 ÖVE - ITT Schaub-Lorenz Wien
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 335 x 220 x 77 mm / 13.2 x 8.7 x 3 inch
Notes

Wellenbereiche:
LW: 146-284 kHz
MW 1: 512-1070 kHz
MW 2: 1000-1630 kHz
KW 1: 3,1-5,5 MHz
KW 2: 5,8-6,3 MHz
KW 3: 14,9-15,9 MHz
KW 4: 6,9-18,1 MHz
UKW: 87,5 108 MHz

2 Ausführungen:
52151403 (ÖVE) = schwarz, Grill Dekor Teak. Mit Prüfzeichen ÖVE für Österreich.
52151407 (SEV) = schwarz, Grill Dekor Teak. Mit Prüfzeichen SEV für die Schweiz.

Lautsprecher:
1 perm-dyn. 13 cm × 18 cm
1 perm-dyn. ø 5,7 cm

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 329.00 DM
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
