Weltecho electronic 1560

Weltecho electronic 1560; ITT Schaub-Lorenz (ID = 1083082) Television Weltecho electronic 1560; ITT Schaub-Lorenz (ID = 1083084) Television
Weltecho electronic 1560; ITT Schaub-Lorenz (ID = 1083085) Television
Use red slider bar for more.
Weltecho electronic 1560; ITT Schaub-Lorenz (ID = 1083082) Television

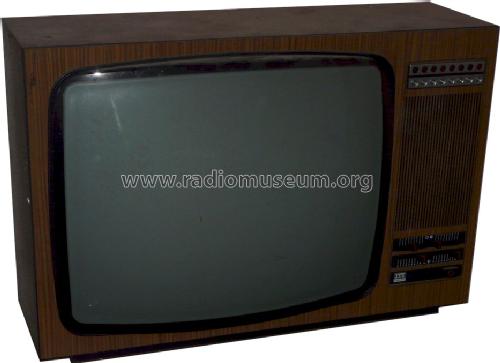

ITT Schaub-Lorenz: Weltecho electronic 1560 [Television] ID = 1083082 933x679
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weltecho electronic 1560, ITT Schaub-Lorenz Wien:
Aufnahme aus einem Verlassenschafts-Haushalt im nordöstlichen Weinviertel/NÖ

Country:  Austria
Manufacturer / Brand:  ITT Schaub-Lorenz Wien
Year: 1975 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Weltecho electronic 1560 - ITT Schaub-Lorenz Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes ITT Schaub-Lorenz Weltecho electronic 1560;
~ 61 cm s/w TV mit 8 Programm CCIR VHF/UHF elektronik Tuner, Sensorbedienung, 140 W Leistungsaufnahme.

Model page created by a member from A. See "Data change" for further contributors.
