stereo 5000 HIFI 52540125
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1968–1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27453
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 37
- Semiconductors
- BF175 BF184 AF138 AF126 AF137 BFY39 BC178 BC172 BC173 BC252 BC171 BC142 BC143 BDY38 AA112 BA121 BAY17 ZF12 ZE2 B30C100 B40C2200
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 14 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-127; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

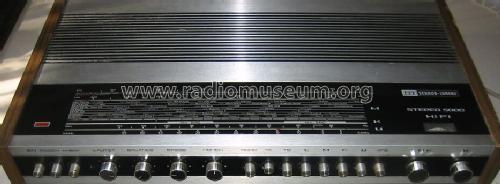

- Model: stereo 5000 HIFI 52540125 - ITT Schaub-Lorenz
- Shape

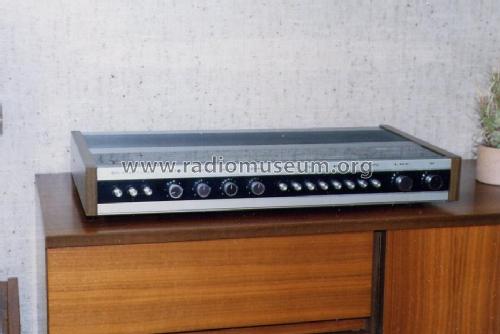

- Book-shelf unit.
- Dimensions (WHD)
- 544 x 80 x 280 mm / 21.4 x 3.1 x 11 inch
- Notes
-

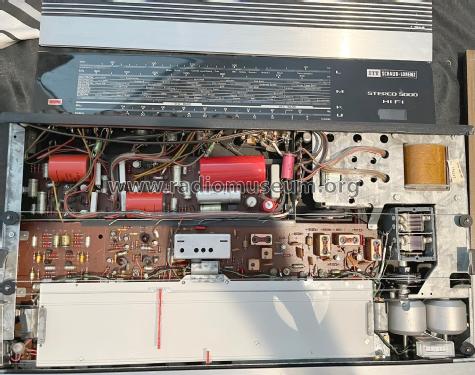

HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 20 W (Sinus).
Semiconductors listed one per type: 37 Transistors, 11 Diodes, 2 Zener Diodes and 2 Rectifier Bridges.

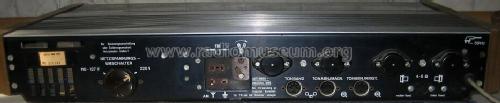

AFC, inputs for Turntable and Tape, switch mono/stereo.
Internal Ferrite antenna for AM, jacks for external antennas both AM and FM.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- External source of data
- erb
- Source of data
- Handbuch VDRG 1968/1969 / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Handbuch VDRG 1970/1971
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- Funk-Technik (FT) (1/1969, S. 20 - 22 / Beschreibung, Schema NF-Verstärker)
- Literature/Schematics (3)
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)
