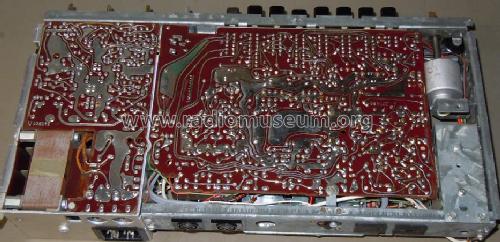

Stereo 3001 electronic; ITT Schaub-Lorenz (ID = 938590) Radio Stereo 3001 electronic; ITT Schaub-Lorenz (ID = 938592) Radio
Use red slider bar for more.

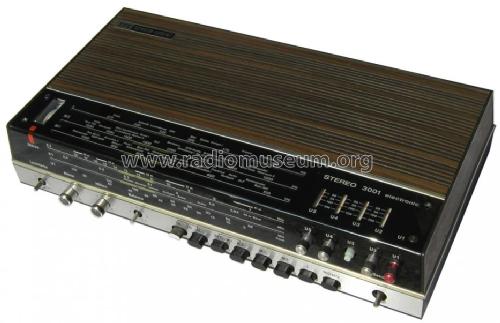

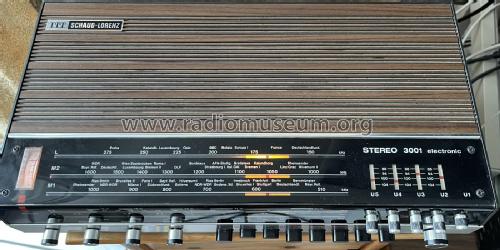

Stereo 3001 electronic; ITT Schaub-Lorenz (ID = 93992) Radio
ITT Schaub-Lorenz: Stereo 3001 electronic [Radio] ID = 93992 933x436
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo 3001 electronic, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1971–1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 29:
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-127; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Stereo 3001 electronic - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Book-shelf unit.
Dimensions (WHD) 395 x 80 x 205 mm / 15.6 x 3.1 x 8.1 inch
Notes ICs: 1.
Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 10 W (Sinus); zwei Lautsprecherboxen im Lieferumfang.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 698.00 DM
Collectors' prices
External source of data Erb
Source of data Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
