Stereo 5501 HIFI Cassette

• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80485

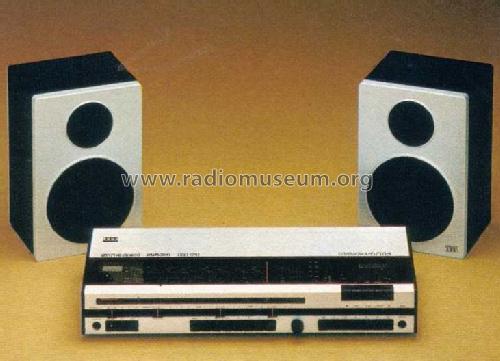

• Picture

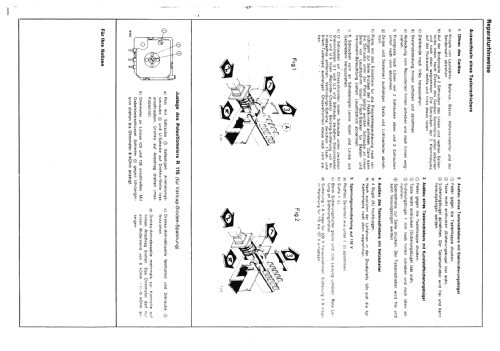

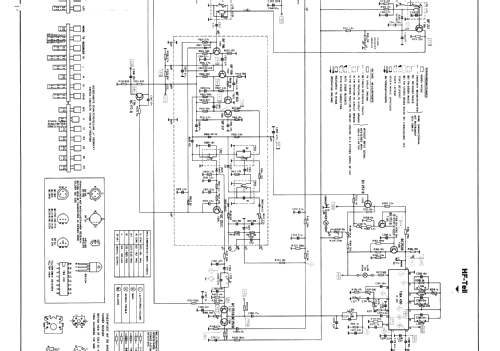

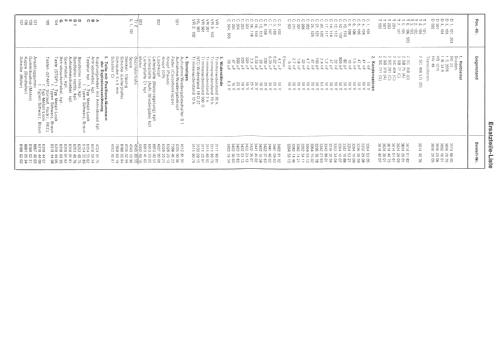

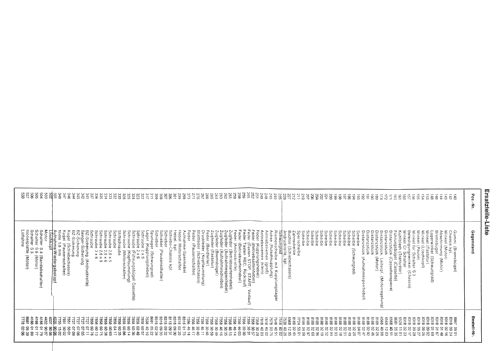

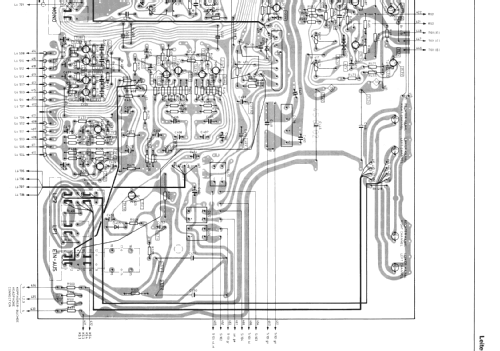

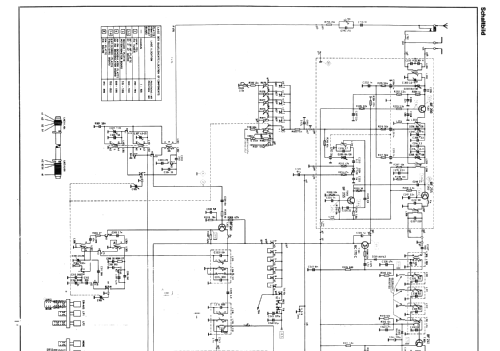

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo 5501 HIFI Cassette - ITT Schaub-Lorenz

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 630 x 90 x 290 mm / 24.8 x 3.5 x 11.4 inch

• Notes
• 3 Ausführungen:
  5253 06 17 = Metall-Look
  5253 06 19 = Schwarz
  5253 06 21 = Braun
  Rundfunkteil 51 Transistoren, 24 Dioden, 4 Gleichrichtr, 1 IC. Recorderteil 19 Transistoren, 9 Dioden. 5 UKW-Stationstasten, 2 x 45 W Musikleistung. Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

• Net weight (2.2 lb = 1 kg)
• 9.2 kg / 20 lb 4.2 oz (20.264 lb)

• Price in first year of sale
• 898.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
