• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1975–1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 134498

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 26

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

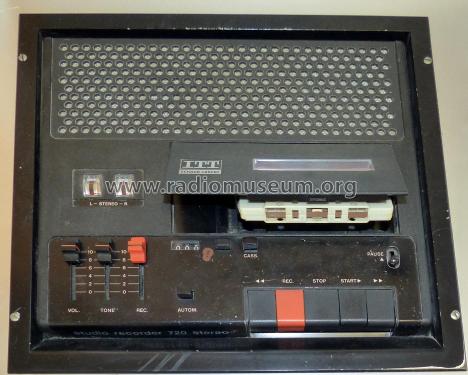

• Model: Studio Recorder 720 Stereo - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 70 x 250 mm / 10.6 x 2.8 x 9.8 inch

• Notes
• ITT Schaub-Lorenz Cassetten-Recorder 720 Stereo.
  Frequenzumfang: 60···12000 Hz; Aussteuerung von Hand oder automatisch. Ausführung: schwarz.Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
