Teddy automatic 100 52130509; ITT Schaub-Lorenz (ID = 2537071) Radio

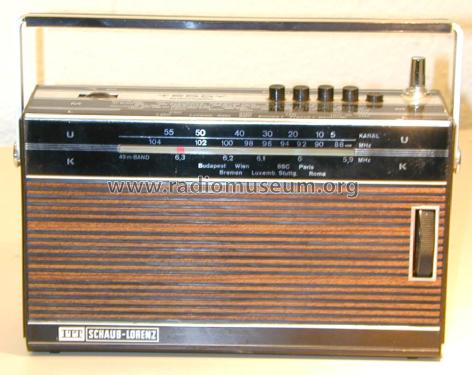

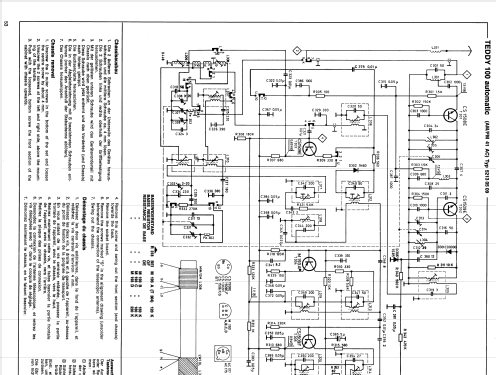

ITT Schaub-Lorenz: Teddy automatic 100 52130509 [Radio] ID = 2537071 1400x1204
Select picture or schematic to display from thumbnails on the right and click for download.
For model Teddy automatic 100 52130509, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1970–1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 5 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-127; 220-240; (4 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Teddy automatic 100 52130509 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 215 x 127 x 70 mm / 8.5 x 5 x 2.8 inch
Notes
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
External source of data Erb
Source of data Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from ITT Schaub-Lorenz
Here you find 759 models, 699 with images and 339 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
