For model Teddy automatic 103 52130583, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1972–1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

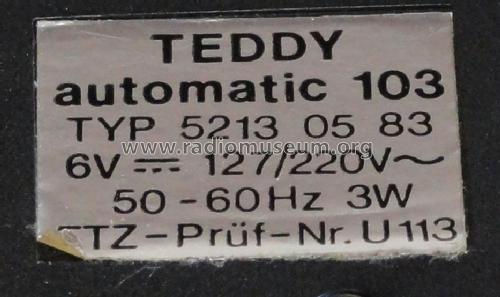

Power type and voltage Line / Batteries (any type) / 110-127; 220-240 / 4×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Teddy automatic 103 52130583 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 150 x 66 mm / 11.2 x 5.9 x 2.6 inch
Notes   MW/LW-Skala mit Ländernamen, Ovallautsprecher 75 x 120 mm, 8 tlg. Teleskopantenne (80 cm), flache Ferritantenne (16 cm), 5 pol Din Buchse für den Anschluß eines Tonbandgerätes oder Plattenspielers, Kopfhöreranschluß über 3,5 mm Klinkenbuchse
Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
External source of data Erb
Source of data Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
