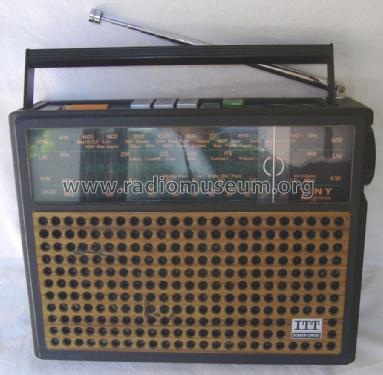

Tiny Electronic 107; ITT Schaub-Lorenz (ID = 767038) Radio
ITT Schaub-Lorenz: Tiny Electronic 107 [Radio] ID = 767038 653x600

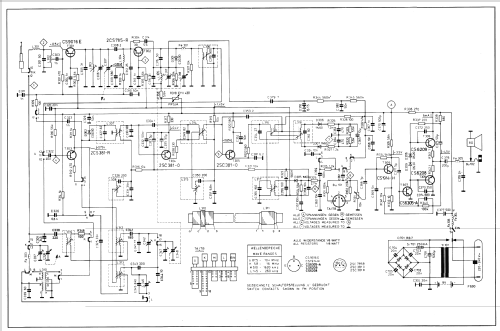

Select picture or schematic to display from thumbnails on the right and click for download.
For model Tiny Electronic 107, ITT Schaub-Lorenz:
Q: ITT Service

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1976/1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: CS9016 2SC785 2SC381 2SC381 2SC381 CS1914 CS6305 CS6209 CS6208 CD0000 DS20
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: Tiny Electronic 107 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 232 x 195 x 63 mm / 9.1 x 7.7 x 2.5 inch
Notes ITT Schaub-Lorenz Tiny Electronic 107.
Gespreiztes 49-m-Europaband; nicht abschaltbare AFC.
Gehäuse-Ausführung: 52130375 schwarz, 52130377 schwarz/silber, 52130379 schwarz/teak.

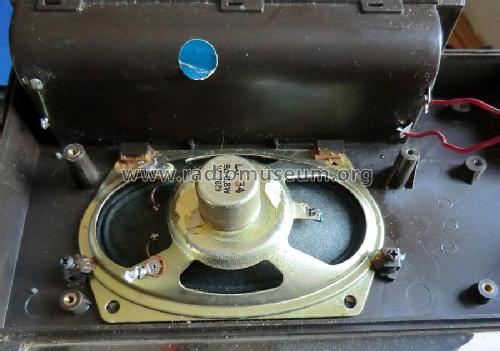

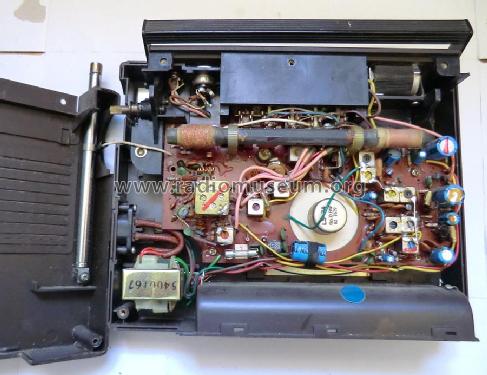

Ferritantenne 16 cm; Lautsprecher 12 x 7,5 cm.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
Source of data Handbuch VDRG 1976/1977

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
