TINY 30 automatic 52130705

ITT Schaub-Lorenz

  • Year
  • 1968/1969
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28225

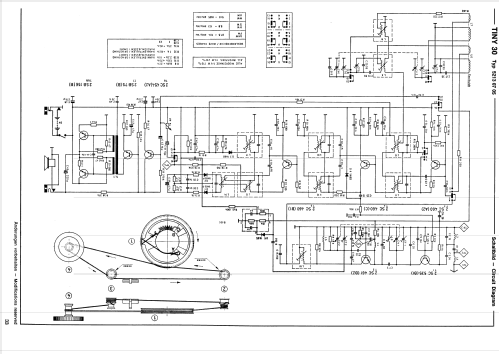

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 458/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 4 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TINY 30 automatic 52130705 - ITT Schaub-Lorenz
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 197 x 123 x 54 mm / 7.8 x 4.8 x 2.1 inch
  • Notes
  • UKW: 87,5 - 104 MHz
    KW: 5800 - 6300 kHz
    MW: 510 - 1605 kHz

    Netzbetrieb mit zusätzlichem Netzteil möglich.
  • Net weight (2.2 lb = 1 kg)
  • 0.9 kg / 1 lb 15.7 oz (1.982 lb)
  • Price in first year of sale
  • 99.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
