TINY 30 LW 52130707

TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 70114) Radio

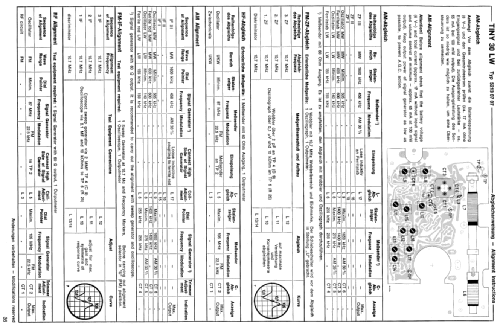

TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 70116) Radio

TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 70115) Radio

TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 70113) Radio

TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 1814282) Radio

TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 1814284) Radio
TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 255333) Radio TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 70112) Radio
TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 1434010) Radio
Use red slider bar for more.
TINY 30 LW 52130707; ITT Schaub-Lorenz (ID = 255333) Radio
ITT Schaub-Lorenz: TINY 30 LW 52130707 [Radio] ID = 255333 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model TINY 30 LW 52130707, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1968/1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SC535 2SC461 1S85 2SC460 2SC460 1N60 2SC460 1N60 1N60 1N60 2SC454 2SB75 2SB156 2SB156
Main principle Superheterodyne (common); ZF/IF 10700/458 kHz
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 4x1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: TINY 30 LW 52130707 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 197 x 123 x 54 mm / 7.8 x 4.8 x 2.1 inch
Notes UKW: 87,5 - 104 MHz
MW: 510 - 1605 kHz
LW: 145 - 265 kHz

Ovallautsprecher 102 x 67 mm, 8 Ohm.
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Egon Penker. See "Data change" for further contributors.
