Tiny 3 52130701

Tiny 3 52130701; ITT Schaub-Lorenz (ID = 68315) Radio

Tiny 3 52130701; ITT Schaub-Lorenz (ID = 68316) Radio

Tiny 3 52130701; ITT Schaub-Lorenz (ID = 68317) Radio

Tiny 3 52130701; ITT Schaub-Lorenz (ID = 68318) Radio
Tiny 3 52130701; ITT Schaub-Lorenz (ID = 1705571) Radio Tiny 3 52130701; ITT Schaub-Lorenz (ID = 1486648) Radio
Tiny 3 52130701; ITT Schaub-Lorenz (ID = 1224229) Radio Tiny 3 52130701; ITT Schaub-Lorenz (ID = 336029) Radio
Tiny 3 52130701; ITT Schaub-Lorenz (ID = 181802) Radio Tiny 3 52130701; ITT Schaub-Lorenz (ID = 336036) Radio

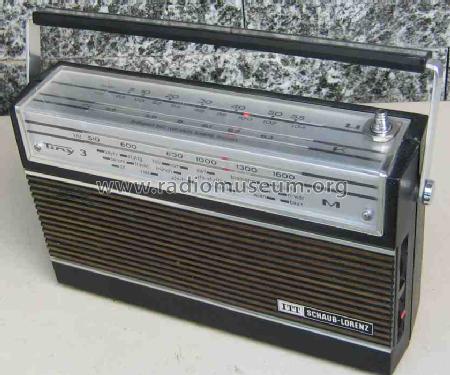

Tiny 3 52130701; ITT Schaub-Lorenz (ID = 336033) Radio Tiny 3 52130701; ITT Schaub-Lorenz (ID = 957192) Radio

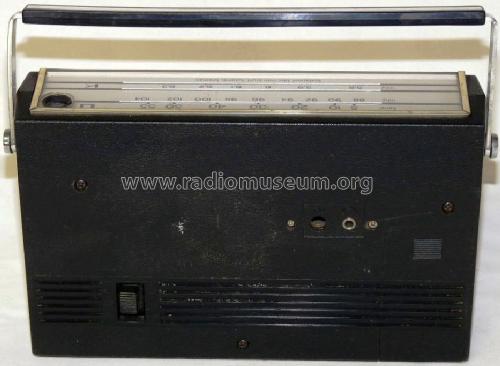

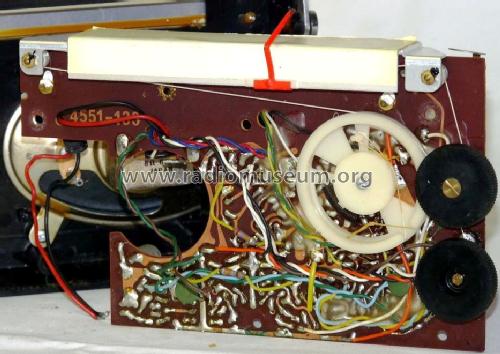

Tiny 3 52130701; ITT Schaub-Lorenz (ID = 1224224) Radio Tiny 3 52130701; ITT Schaub-Lorenz (ID = 1224225) Radio
Use red slider bar for more.
Tiny 3 52130701; ITT Schaub-Lorenz (ID = 1705571) Radio
ITT Schaub-Lorenz: Tiny 3 52130701 [Radio] ID = 1705571 933x972
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tiny 3 52130701, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1969/1970 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SC535 2SC461 2SC460 2SC460 1N60 2SC460 1N60 1N60 1N60 2SC454 2SB75 2SB156 2SB156
Main principle Super-Heterodyne (Super in general); ZF/IF 458/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Tiny 3 52130701 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (usable also without mains)
Dimensions (WHD) 197 x 123 x 54 mm / 7.8 x 4.8 x 2.1 inch
Notes UKW: 87,5 - 104 MHz
KW: 5800 - 6300 kHz
MW: 515 - 1610 kHz

Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Collectors' prices
Source of data Handbuch VDRG 1969/1970 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Schematic
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from ITT Schaub-Lorenz
Here you find 746 models, 688 with images and 317 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
