TINY automatic 104

TINY automatic 104; ITT Schaub-Lorenz (ID = 96052) Radio

TINY automatic 104; ITT Schaub-Lorenz (ID = 96051) Radio

TINY automatic 104; ITT Schaub-Lorenz (ID = 875648) Radio

TINY automatic 104; ITT Schaub-Lorenz (ID = 875649) Radio

TINY automatic 104; ITT Schaub-Lorenz (ID = 875651) Radio

TINY automatic 104; ITT Schaub-Lorenz (ID = 875650) Radio

TINY automatic 104; ITT Schaub-Lorenz (ID = 875652) Radio
TINY automatic 104; ITT Schaub-Lorenz (ID = 1632479) Radio TINY automatic 104; ITT Schaub-Lorenz (ID = 2220004) Radio
TINY automatic 104; ITT Schaub-Lorenz (ID = 2220003) Radio TINY automatic 104; ITT Schaub-Lorenz (ID = 170210) Radio
TINY automatic 104; ITT Schaub-Lorenz (ID = 745771) Radio TINY automatic 104; ITT Schaub-Lorenz (ID = 94453) Radio
TINY automatic 104; ITT Schaub-Lorenz (ID = 1372730) Radio TINY automatic 104; ITT Schaub-Lorenz (ID = 1372731) Radio
TINY automatic 104; ITT Schaub-Lorenz (ID = 1372732) Radio TINY automatic 104; ITT Schaub-Lorenz (ID = 1372733) Radio
Use red slider bar for more.

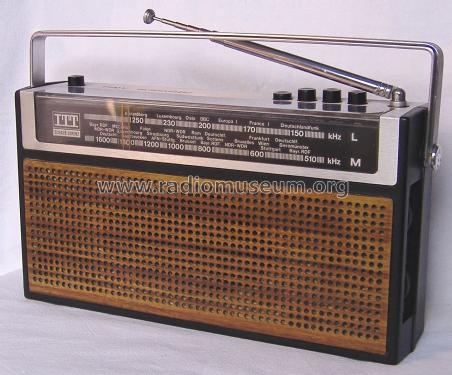

TINY automatic 104; ITT Schaub-Lorenz (ID = 1632479) Radio
ITT Schaub-Lorenz: TINY automatic 104 [Radio] ID = 1632479 900x746
Select picture or schematic to display from thumbnails on the right and click for download.
For model TINY automatic 104, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SC784 2SC785 2SC381 2SC381 2SC381 CS1914 CS1312 CS1910 CS1909 2SB405
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-240 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.6 W (unknown quality)
from Radiomuseum.org Model: TINY automatic 104 - ITT Schaub-Lorenz
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 135 x 60 mm / 9.8 x 5.3 x 2.4 inch
Notes Nichtabschaltbare automatische UKW-Scharfabstimmung.
Net weight (2.2 lb = 1 kg) 1.2 kg / 2 lb 10.3 oz (2.643 lb)
External source of data Erb
Source of data Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
