• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1974/1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29485

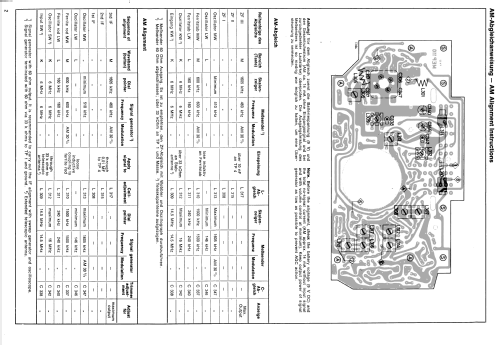

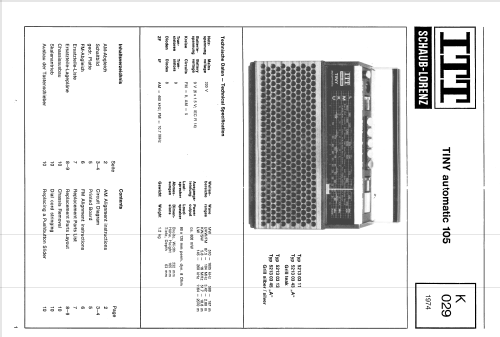

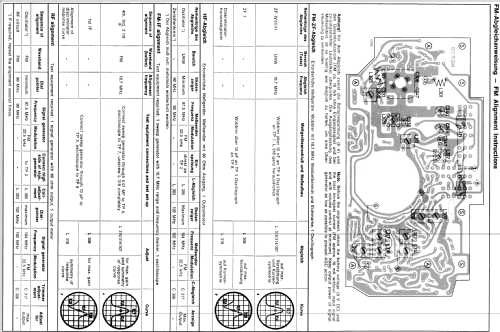

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• CS9016 2SC785 2SC381 2SC381 CS1914 CS1312 CS1910 CS1909

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

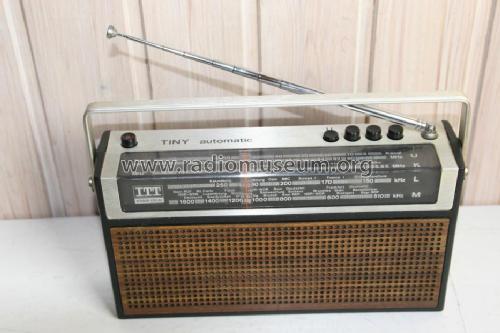

• Model: TINY automatic 105 - ITT Schaub-Lorenz

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 232 x 165 x 63 mm / 9.1 x 6.5 x 2.5 inch

• Notes
• Zwei Ausführungen: Typ 52130311 = schwarz/teak, Typ 52130313 = schwarz/silber.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974 / Radiokatalog Band 2, Ernst Erb
