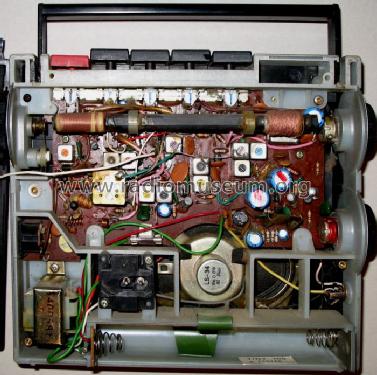

TINY electronic 108; ITT Schaub-Lorenz (ID = 247247) Radio — ITT Schaub-Lorenz TINY electronic 108 (1)
Auf dem Flohmarkt gefunden!!!!

TINY electronic 108; ITT Schaub-Lorenz (ID = 561072) Radio — ITT Schaub-Lorenz TINY electronic 108 (1)

TINY electronic 108; ITT Schaub-Lorenz (ID = 561078) Radio — ITT Schaub-Lorenz TINY electronic 108 (1)

TINY electronic 108; ITT Schaub-Lorenz (ID = 561082) Radio — ITT Schaub-Lorenz TINY electronic 108 (1)

TINY electronic 108; ITT Schaub-Lorenz (ID = 561083) Radio — ITT Schaub-Lorenz TINY electronic 108 (1)

TINY electronic 108; ITT Schaub-Lorenz (ID = 561084) Radio — ITT Schaub-Lorenz TINY electronic 108 (1)

TINY electronic 108; ITT Schaub-Lorenz (ID = 574746) Radio — ITT Schaub-Lorenz TINY electronic 108 (2)

TINY electronic 108; ITT Schaub-Lorenz (ID = 1283158) Radio — ITT Schaub-Lorenz TINY electronic 108 (2)

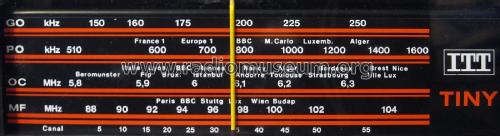

Scan aus einem Planet-Prospekt von 1977

TINY electronic 108; ITT Schaub-Lorenz (ID = 2710098) Radio — ITT Schaub-Lorenz TINY electronic 108 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
10

Semiconductors

Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz; 5 AF stage(s)

Tuned circuits
5 AM circuit(s) 8 FM circuit(s)

Wave bands
Broadcast, Long Wave, Short Wave plus FM or UHF.

Power type and voltage
Line / Batteries (any type) / 110-127; 220-240 / 6×1,5 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
0.6 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: TINY electronic 108 - ITT Schaub-Lorenz

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
230 x 195 x 73 mm / 9.1 x 7.7 x 2.9 inch

Notes
Gehäuse: Schwarz, Grill teakabig oder silber. ITT Schaub-Lorenz Tiny 108, KW mit 49m Band. Autom. UKW-Scharfabstmmung. Gehäuse: Schwarz, Grill teak oder silber. Ein Gerät auch für die Planet UE Handelsgruppe.

Net weight (2.2 lb = 1 kg)
1.5 kg / 3 lb 4.9 oz (3.304 lb)

Source of data
Handbuch VDRG 1977/1978 / Radiokatalog Band 2, Ernst Erb
