Touring International Marine 52150951
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1972/1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 28928

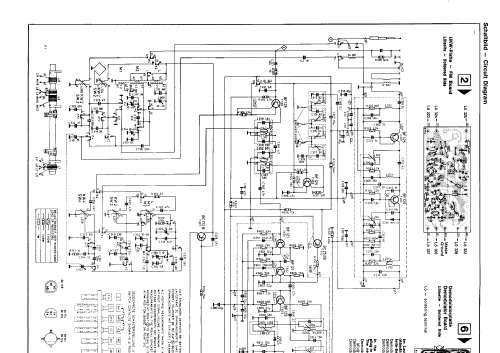

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 4 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 200/240/9 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Touring International Marine 52150951 - ITT Schaub-Lorenz
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 335 x 220 x 77 mm / 13.2 x 8.7 x 3 inch
- Notes
- 16 Trans. / 12 Dioden 2 MW-Bänder: (512kHz-1070kHz + 1000kHz-1630kHz). 4 KW-Bänder (1,6MHz-2,2MHz, 2,1MHz-4,5MHz Marinebänder) + 5,85MHz-6,35MHz=49mBand, + 6,1MHz-16,1MHz.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Price in first year of sale
- 329.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
