• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1972/1973

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 28816

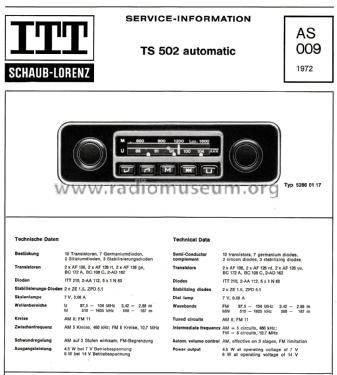

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6;12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 4.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: TS502 automatic 52860117 - ITT Schaub-Lorenz

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 42 x 148 mm / 7 x 1.7 x 5.8 inch

• Notes
•

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 179.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb
