Viola 250 Stereo

Viola 250 Stereo; ITT Schaub-Lorenz (ID = 891511) Radio

Viola 250 Stereo; ITT Schaub-Lorenz (ID = 891512) Radio
Viola 250 Stereo; ITT Schaub-Lorenz (ID = 1890852) Radio Viola 250 Stereo; ITT Schaub-Lorenz (ID = 1628532) Radio
Viola 250 Stereo; ITT Schaub-Lorenz (ID = 973871) Radio Viola 250 Stereo; ITT Schaub-Lorenz (ID = 973875) Radio
Viola 250 Stereo; ITT Schaub-Lorenz (ID = 973872) Radio Viola 250 Stereo; ITT Schaub-Lorenz (ID = 443709) Radio
Viola 250 Stereo; ITT Schaub-Lorenz (ID = 973873) Radio Viola 250 Stereo; ITT Schaub-Lorenz (ID = 973874) Radio
Viola 250 Stereo; ITT Schaub-Lorenz (ID = 1801315) Radio Viola 250 Stereo; ITT Schaub-Lorenz (ID = 2107773) Radio
Use red slider bar for more.
Viola 250 Stereo; ITT Schaub-Lorenz (ID = 1890852) Radio
ITT Schaub-Lorenz: Viola 250 Stereo [Radio] ID = 1890852 1400x626
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viola 250 Stereo, ITT Schaub-Lorenz

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1983–1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: BF254 BF254 BF451 BF254 BF254 BF238 BC337 BC238 KB4419A TA7343 TA7232
Main principle Superheterodyne (common); ZF/IF 459/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Viola 250 Stereo - ITT Schaub-Lorenz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 480 x 145 x 168 inch / 12192 x 3683 x 4267 mm
Net weight (2.2 lb = 1 kg) 2.8 kg / 6 lb 2.7 oz (6.167 lb)
Price in first year of sale 275.00 DM
Source of data -- Original prospect or advert

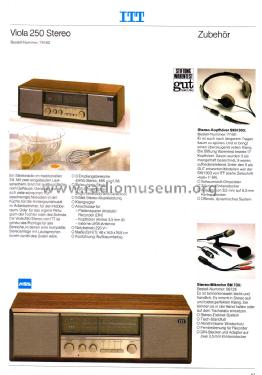

Mentioned in ITT Prospekt 1985

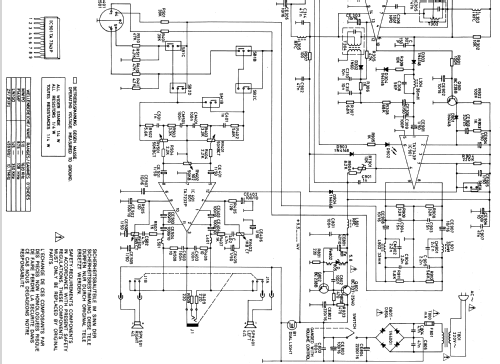

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
