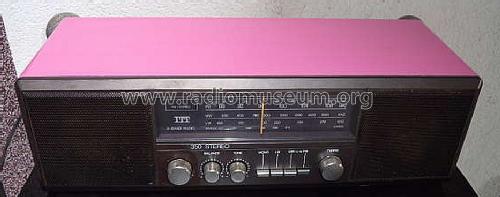

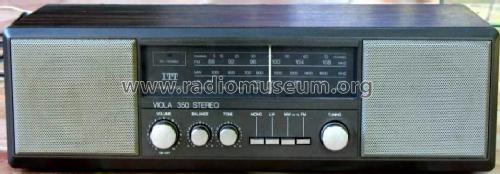

Viola 350(A) 3-Band Stereo Radio 5511 51 91

Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 173495) Radio

Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 173496) Radio

Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 173497) Radio

Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 173500) Radio

Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 173501) Radio

Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 173502) Radio
Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 2107784) Radio Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 2107785) Radio
Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 2081361) Radio Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 2081362) Radio
Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 2081363) Radio Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 2081364) Radio
Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 2081366) Radio Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 198262) Radio
Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 198263) Radio Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 160426) Radio
Use red slider bar for more.
Viola 3503-Band Stereo Radio 5511 51 91; ITT Schaub-Lorenz (ID = 2107784) Radio
ITT Schaub-Lorenz: Viola 3503-Band Stereo Radio 5511 51 91 [Radio] ID = 2107784 1200x465
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viola 350(A) 3-Band Stereo Radio 5511 51 91, ITT Schaub-Lorenz:
Q: ITT, Produkt-Katalog '87

Country:  Germany
Manufacturer / Brand:  ITT Schaub-Lorenz
Year: 1985/1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5: BF254 ED1502 ED1502 ED1502 BC337 TDA1220 TA7343 TDA2824
Main principle Superheterodyne (common); ZF/IF 459/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers / Ø 9 cm = 3.5 inch
Power out 12 W (unknown quality)
from Radiomuseum.org Model: Viola 3503-Band Stereo Radio 5511 51 91 - ITT Schaub-Lorenz
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 485 x 150 x 180 mm / 19.1 x 5.9 x 7.1 inch
Notes

Das Modell gibt es auch von Nokia / Graetz) als Viola 350A.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (ITT Prospekt 1987)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
