Weltecho T322 Color
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1969 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 273992
aus Hauptkatalog 1969

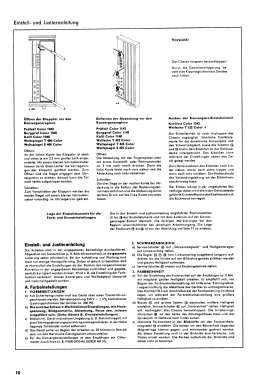

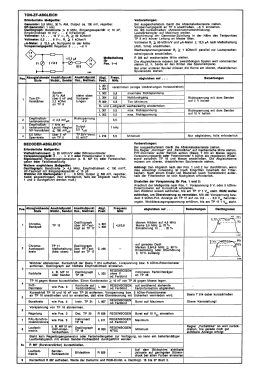

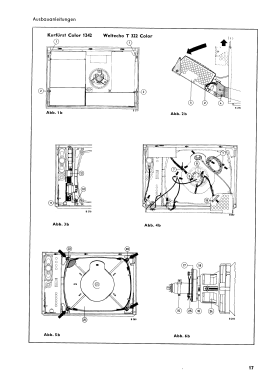

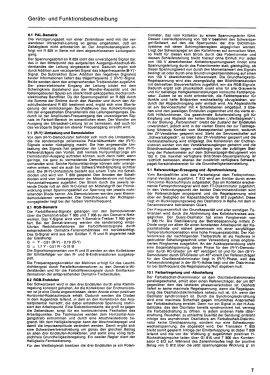

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- 44
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Various materials
- from Radiomuseum.org
- Model: Weltecho T322 Color - ITT Schaub-Lorenz
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 720 x 490 x 463 mm / 28.3 x 19.3 x 18.2 inch
- Notes
-
VHF/UHF Feinabstimm-Automatik, Fernbedienung FB400, 55-cm-Permacolor Bildröhre, in Farben Nußbaum Hell-Matt-oder Dunkel Hochglanz.
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
