Weltecho T 422 Color
ITT Schaub-Lorenz
- Country
- Germany
- Manufacturer / Brand
- ITT Schaub-Lorenz
- Year
- 1968
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 286435

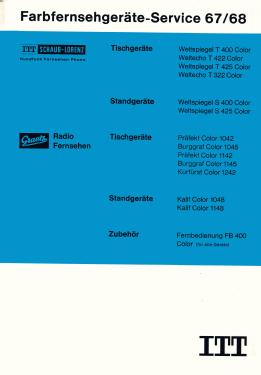

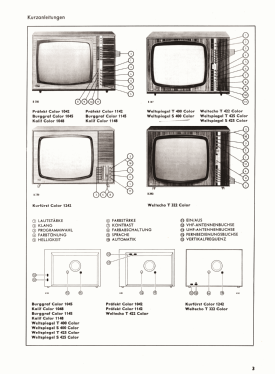

Bild aus dem Serive Manual 3
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Weltecho T 422 Color - ITT Schaub-Lorenz
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 711 x 498 x 483 mm / 28 x 19.6 x 19 inch
- Notes
-
55-cm-Farbbildröhre in Permacolor-Technik, 6 Programmtasten mit Leuchtanzeige, weitgehend transistorisiert
- Price in first year of sale
- 2,060.00 DM
- Author
- Model page created by Michael Mehnert. See "Data change" for further contributors.
