Stereophones RP705

Stereophones RP705; ITT-Nokia trade mark (ID = 1531055) Radio

Stereophones RP705; ITT-Nokia trade mark (ID = 1531056) Radio

Stereophones RP705; ITT-Nokia trade mark (ID = 1531057) Radio

Stereophones RP705; ITT-Nokia trade mark (ID = 1531058) Radio

Stereophones RP705; ITT-Nokia trade mark (ID = 1531059) Radio

Stereophones RP705; ITT-Nokia trade mark (ID = 1531060) Radio
Stereophones RP705; ITT-Nokia trade mark (ID = 1718612) Radio Stereophones RP705; ITT-Nokia trade mark (ID = 1528871) Radio
Stereophones RP705; ITT-Nokia trade mark (ID = 1721164) Radio Stereophones RP705; ITT-Nokia trade mark (ID = 1721165) Radio
Stereophones RP705; ITT-Nokia trade mark (ID = 1721166) Radio Stereophones RP705; ITT-Nokia trade mark (ID = 1721167) Radio

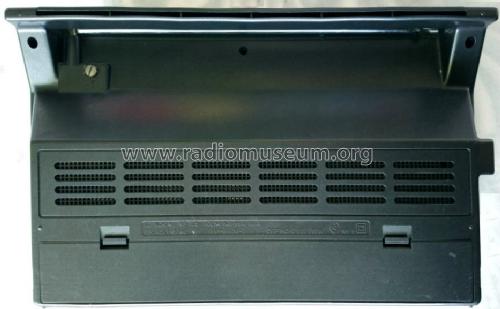

Stereophones RP705; ITT-Nokia trade mark (ID = 1721168) Radio Stereophones RP705; ITT-Nokia trade mark (ID = 1721169) Radio
Stereophones RP705; ITT-Nokia trade mark (ID = 1721170) Radio Stereophones RP705; ITT-Nokia trade mark (ID = 1721173) Radio
Use red slider bar for more.
Stereophones RP705; ITT-Nokia trade mark (ID = 1718612) Radio
ITT-Nokia trade mark: Stereophones RP705 [Radio] ID = 1718612 933x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereophones RP705, ITT-Nokia (trade mark):
Thanks for Mr.May36, Hungary, Szeged and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Worldwide
Manufacturer / Brand:  ITT-Nokia (trade mark)
Year: 1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: BF194 BF195 BF195 BF241 BC148 BD139 TBA810 or. UL1481 TBA810 or. UL1481 TDA1047 or. A225D UL1520 ULN3809 or. MC1309
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Stereophones RP705 - ITT-Nokia trade mark
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

5 FM Stationstasten.

In der Stückliste wird der IC A225D fälschlich als A2250 geführt.

Made by Eltra, Poland.

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Richard Winter. See "Data change" for further contributors.
